3 Way Manifold
3 Way Manifold
- PART # AND DESCRIPTION
- PRICE
- SPECS
-

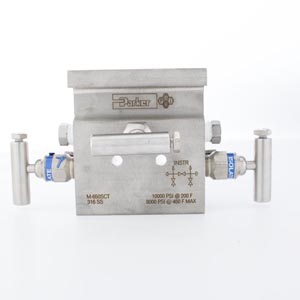

Parker, Three Valve Manifold, 1/2 NPT, Parker Part No. HEFS38N
-
SPECSMPN: HEFS38NPack Size: 1UOM: EA
-
H-Series 3 Valve Manifold, 2X block and bleed, Needle Valve isolates, inlet: 1/2 in. mnpt, outlets: 3-off ½ in. fnpt, vent: ¼ in. fnpt, outlet/vent ports has pin holes, W.P. 6000 psi., 500 deg. F ,Fire Safe, 316SS body, Tip: SS, Non-Wetted, 316 SS.
-
SPECSMPN: HLS3DBB8M8FMGP4FFNPack Size: 1UOM: EA
-
Parker Hi-Pro Manifold, 3 Valve Double Block and Bleed (Ball-Needle-Ball) 316SS Body,1/2 in Inlet Male Npt Std Ext, Kidney Flange Outlet Con, 3/16 in OD Vent Conn(via bleed valve).Firesafe and Nace,PEEK Seats, Graphite Valve Packing,w/Handles on Same Side
-
SPECSMPN: HPM6LS3DBB8MKF4FBVSHFN-5Pack Size: 1UOM: EA
-
3 Valve Manifold Carbon Steel 1/2 In FNPT x Flange .187 Orifice Teflon Pressure-Core Seal Carbide Ball Seat, Parker Pt No. M-650CCT
-
Available for Back-Order
-
SPECSMPN: M-650CCTPack Size: 1UOM: EA
-
3 Valve Manifold 316SS 1/2 In FNPT x Flange.187 Orifice Teflon Pressure-Core Seal Carbide Ball Seat, Parker PGI Pt No. M-650SCT
-
$455.36Available for Back-Order
-
SPECSMPN: M-650SCTPack Size: 1UOM: EA
-
Parker PGI 3 Valve Manifold, 316SS, 1/2 In FNPT x Flange, .187" Orifice, Teflon Pressure Core Stem Seal, Carbide Ball Seat with 316SS Standard Length Flange Bolts, Pt No. M-650SCT-W9
-
$470.02Available for Back-Order
-
SPECSMPN: M-650SCT-W9Pack Size: 1UOM: EA
